6" ELO LED Surface Mount Luminaire with Selectable Lumens & CCT, Up to 1550lm / 15W, Matte
Image may not reflect selected features

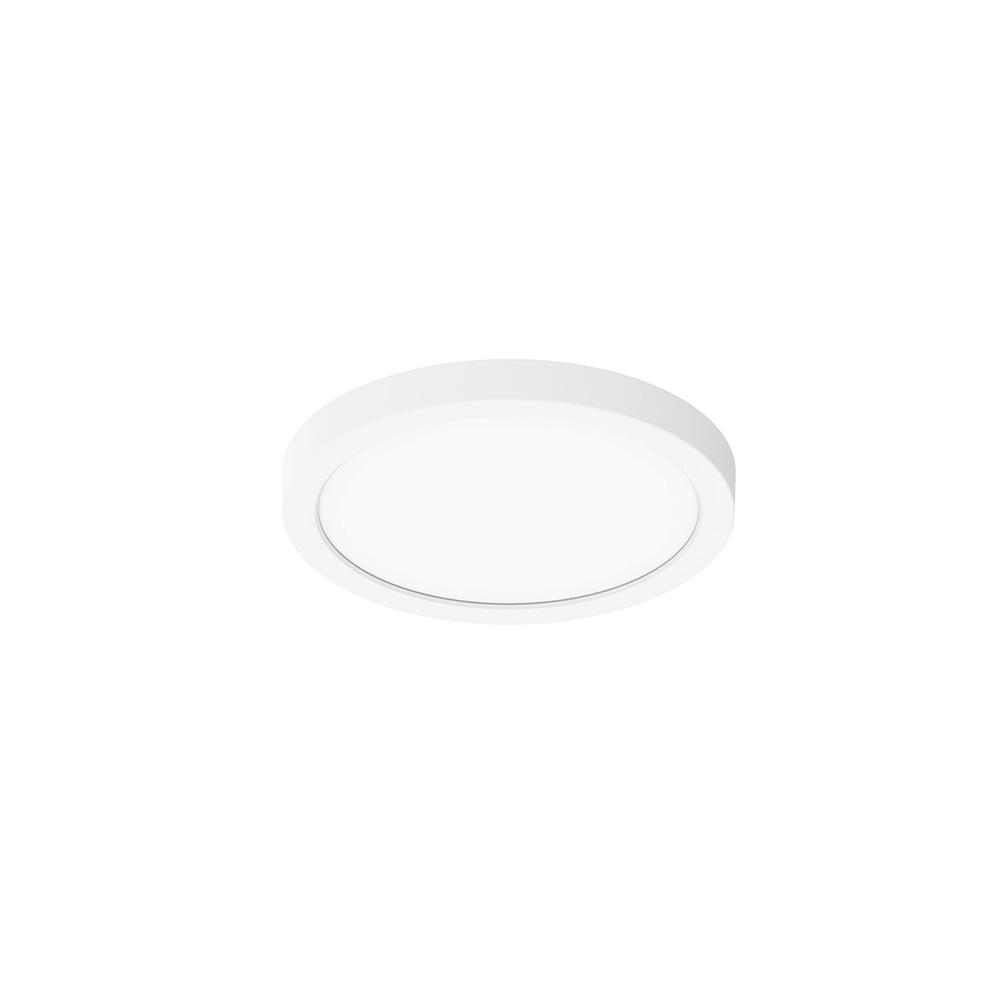

6" ELO LED Surface Mount Luminaire with Selectable Lumens & CCT, Up to 1550lm / 15W, Matte (1U5VF4)
6" ELO LED luminaires are a thin 5/8" surface mounted luminaire two tunable switches; Selectable Lumens allows the end user
to determine the wattage input & Selectable CCT changes the color temperature appearance. Luminaires mounts easily over a standard or fire rated junction boxes.
Input Voltage: 120-277V
Lumens / Wattage: Selectable Lumens (950lm / 8W; 1250lm / 11W; 1550lm / 15W)
Color Temperature: Selectable CCT (27K/30K/35K/40K/50K)
Color Rendering Index: 90+ CRI
Dimming: 0-10V
Finish: Matte Powder White
Listing: cETLus Listed for Wet Locations
Downloads
Product Specification
Item #
1U5VF4
Dimensions
Height: 1.75"
Width: 7.00"
Additional product details
Category
Flush Mounts
Subcategory
Other Flush Mounts
Option
Title 24
Category
Surface
Product Line
LE88
Est. Shipping Wt.
2
Length
7
Lumens / Light Output
Selectable Lumens (950lm / 1250lm / 1550lm)
Ship Carton Height
2.75
Ship Carton Length
7.75
Ship Carton Width
7.375
Weight
.7
CCT
Selectable CCT (27K / 30K / 35K / 40K / 50K)
CEC Database
Y
CEC Item Number
NELOSW-6RTWMPW
CEC Substitute Item
NELO-6RTWMPW
Contains Battery
N
Country of Origin
MYS
CRI
90
DLC Listed
No
Master Box H
9
Master Box L
16
Master Box Qty
12
Master Box W
16
Master Box Wt.
12
Product Family
6" ELO
Safety Listing
cETLus
Wattage
Selectable Wattage (8W / 11W / 15W)


Other Details:
  • .8
Finish
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
25
13
/ / 1
($25.13 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 2 items available.
